Fender Blues Deville Reissue Modifications
Unleash the tone of your Blues Deville Reissue with the Supreme Mod Kit from Fromel Electronics!
This kit works for the Reissue Blues Deville (the Made in Mexico version). If you have an original Blues Deville see my listing for that item. The Blues Deville in its short life has received a lot of acclaim, it sounds good and is pretty reliable, other than a couple common problems. After these mods your amp will sound fantastic and be more reliable. The classic Fender tone is released through these changes. The flabby bottom darkness is gone, what you get is full warm classic tone with nice top end sparkle. Complete kit with detailed instruction book with photo's includes all the following mods. This Mod kit is for the current re-issue Made in Mexico version.
Additionally, the kit upgrades every tone-critical cap in the circuit with high quality F&T and Nichon electrolytic caps. All the capacitors in this kit were specially chosen for great tone, reliability, and accurate fit in your Reissue Blues Deville.
*Recently we have made the decision to switch from F&T capacitors to ARS capacitors. ARS capacitors outperform F&T capacitors with a lower ESR, a higher temperature rating of 105c and is located locally in Los Angeles, CA. We're working to update our product photos as soon as possible. Feel free to contact us with any questions about this change that you may have.
Please Note: The Supreme Mod kit includes both the "Complete Mod Kit" and "Recap Kit" that we offer and is the ultimate tonal upgrade for your own amplifier!
"Have us Install" price includes parts and labor. We will bill you return shipping upon installation completion and which will be comparable to the cost of shipping it in. You can view USPS Parcel Select shipping rates HERE . Since we're located in the Pacific Northwest you can calculate shipping cost by how many zones it crosses to reach us from where you ship it from.

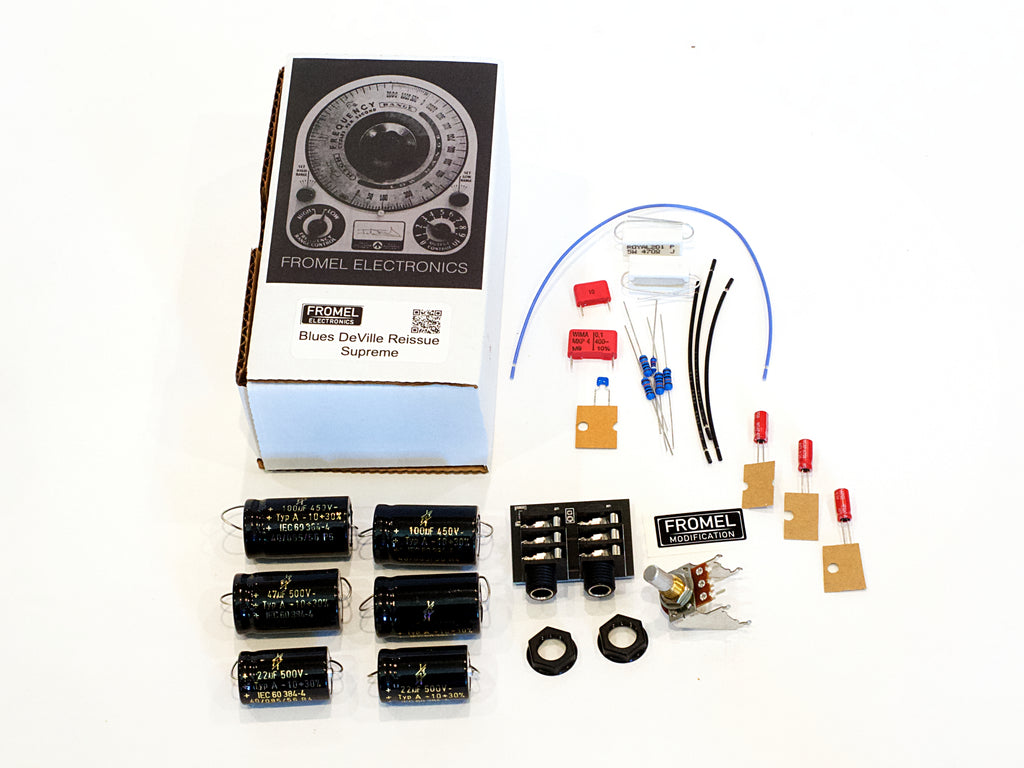

Included in the kit is all the components necessary to to get your amp in top shape and the detailed instructions to make the changes easy. If you have a basic understanding of electronics and soldering skills you can do these mods in a couple of hours. Included in this kit are the following upgrades:
Tone Stack - Get rid of that farty bottom, honky mids, and lack of clarity. High Quality WIMA caps with corrected values for the Bass and Mid Cap and corrected value for the slope resistor. What about the Treble cap? replace the cheap ceramic cap with a high quality Silver Mica cap. The result is an amp that sounds huge and warm with nice top end sparkle, not dark and burried in the mix.
Twin Mod - Fix the mids on the amp and get rid of that flabby bottom. This mod enables you to take all the mids out of the tone allowing more flexibility and versatility. This is accomplished with just a short jumper wire but the result is far better control of your tone.
Brightness - Like to play at low volumes but find the amp too dark? The brightness mod adds sparkle to your tone at low volumes. As you turn your amp up the brightness mod looses its effect so the amp never sounds brittle at high volumes.
Power Resistors- Many problems with the Blues, especially the older ones are from the power resistors that control switching. Two new power resistors installed properly will avoid many problems down the road.
Plate Load Resistors - Replace all the plate load resistors with 1% 1/2 Metal Film resistors. This amp can develop a loud crackle/static that is caused by the plate load resistors. This mod fixes or prevents this problem and using the same carbon comp resistors found in vintage and boutique amps you add rich harmonic overtones.
Reverb Mod - Why does the reverb in this amp become a complete wash after turning it up past 3 especially at low volumes? This mod makes the reverb more controllable, fuller, and more natural. This is an easy mod that is nothing more than clipping one wire and replacing one cap but the result is amazing.
Global Master Volume Mod - This mod allows the Master Volume to work on both the clean channel and the drive channel.
Switchcraft Input Jacks- Your input jacks are soldered directly to the circuit board, apply some tension when the amp is plugged in and you could cause major damage to the circuit board in the amp. This mod gets rid of the wimpy plastic input jacks and replaces them with high quality metal switchcraft jacks that are panel mounted and NOT directly soldered to the circuit board. Included is a shoulder washer and isolation washer so the input jacks do not ground directly to the chassis and prevents ground loops. The jacks come pre-wired with high quality, Teflon Coated, Silver Plated Copper Core wire. The solder I use is Silver bearing. This is the same quality you will find in high end boutique amplifiers costsing thousands of dollars.
Proper Lead Dress - Take a look inside a boutique tube amp and you will see all the wires carefully twisted and placed for greatest reduction in oscillation and noise. The Blues Deville has all the internal wires zip tied together. I give clear instructions on dressing the leads inside the amp for optimal performance, this results in lower noise and less chance for oscillation.
Electrolytic Cap Upgrade - Replaces all of the power filter and cathode bypass caps with high quality F&T and Nichicon caps.
*Just wanted to let you know that today I installed the Hot Rod Dlx "ultimate mod" kit I purchased from you on 19th Feb in my Hot Rod Dlx. The result has been, in a word, SENSATIONAL. The difference is like night and day. Installing these mods has taken a pretty decent mid price combo and raised it to the level of boutique quality tone.*Your instructions were clear and concise, and the results spectacular. Bravo on a wonderful product
WARNING: Performing these modifications WILL void the warranty on your amplifier. Working on amps can be deadly if you do not take proper precautions. Follow these instructions very carefully. If you are at all unsure of your ability to perform these modifications STOP and take your amp to a professional to be modified. You can also send your amp to me for modification.
No Warranty: This kit and the instructions included do not include any warranty of any kind. The modifications to your amplifier are at your own risk and you agree to completely hold harmless the seller of this kit against any and all claims. Tube amplifiers contain parts that operate at very high temperatures and deadly voltages. If you are not sure of your abilities to perform these modifications then do not perform them.
